How to update Lonsdor K518ise Key programmer Hibernation Function?

Here is for you information: Lonsdor K518ISE Hibernation Function update instruction. Keep reading to find out more.

Updated Device: Lonsdor K518
Updated Condition: for all K518 devices with working normally
Updated Content: Added Hibernation function; Kernel update supported
Updated Version: K518 APK V1.5.25

Preparation for Update:
1. Power on the device or keep the battery level over 80%.
2. Make sure wifi network is in good condition and the device receives signal normally

Update steps:


Step 1. Click [One key update] and skip to below interface. Then click the first button to update system. When the update complete, click [OK] to reboot the device.

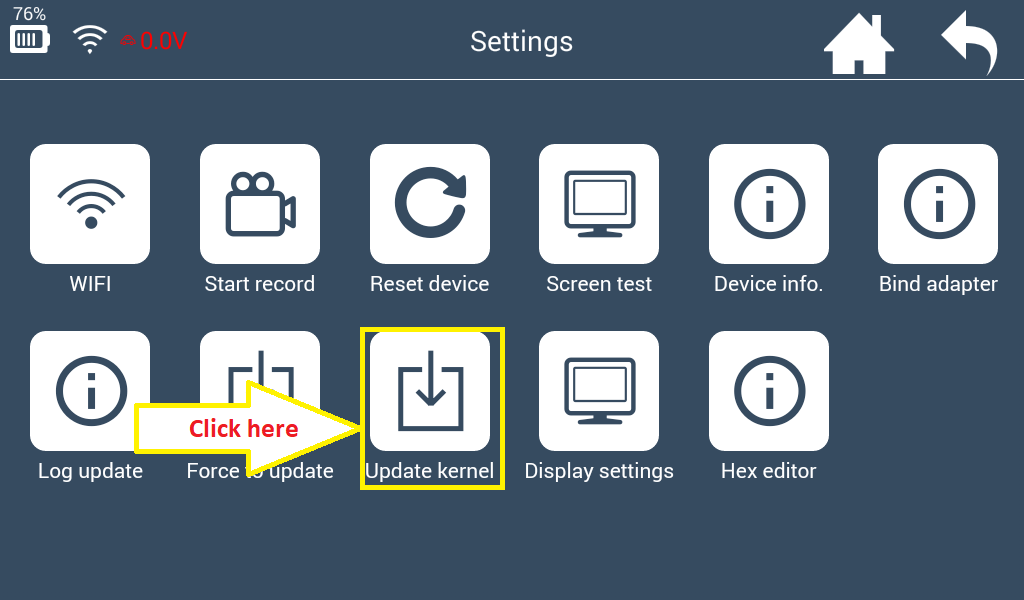

Step 2. After rebooting, click and enter [Settings] menu, you will find there are two additional function buttons: [Update Kernel ] and [Display Settings].

Step 3. Click [Update Kernel] first and skip to below interface, then press [Update] to update the kernel.

Step 4. Click [Install] after updating the kernel file. And the device will reboot to install kernel.

Step 5. Blank screen is normal during the installation. The whole process will take 5 minutes, be patient to wait and don't restart the device manually.

Step 6. The update complete when the password input interface appears. Screen auto-lock in the [Display Settings ] is added.

Step 7. Enter [Settings]→[Display Settings] to adjust the screen brightness and screen auto-locking time.

8. The benefits for update: Save power to prolong stand-by time. Auto standby function can prevent the device from being overheated in hot summer.

Hibernation Function update instruction Download: http://www.obd2shop.co.uk/upload/pro/lonsdor-k518ise-hibernation-function-update-instruction.pdf

Lonsdor k518ise Key programmer for sale: http://www.obd2shop.co.uk/wholesale/lonsdor-k518ise-key-programmer.html

Toyota/Lexus the 5th emulator for Chip 39 (128 bit) Description: Function, Operation, Attention, Reference

This post basically introduce Lonsdor Orange SKE-LT-DSTAES Chip 39 (128 bit) 5th Emulator for 4 parts: Function, Operation, Attention, and Reference. Please continue to read for more details.

Functions:

Operational process for all key lost
Please confirm whether emulator key (SKE) is bound to K518 device beforehand.
Backup EEPROM data-> Generate new data-> Dismantle immo box and write new data to EEPROM-> Generate SKE-> Add/delete smart key

1. Backup original EEPROM immo data.
2. Use backup data to generate new data.
3. System certify and generate new data automatically, and program SKE to become an available key,which can open dashboard.,before key programming.
4. Add a smart key.
5. Delete programmed key.
6. Bind SKE: Require to bind all SKE to K518 for the first use.

Operation:

Operational process for all key lost
Please confirm whether K518 is bound to emulator key (SKE).
1) Backup EEPROM data--> 2) Generate emulator key (SKE)--> 3) Use SKE to switch ignition ON--> 4) Add smart key

1. Operation
1) Backup EEPROM immo data.
2) Generate a SKE for emergency use.
3) Put the SKE close to start button and dashboard will be lit up.
4) Add a smart key.
5) Delete a smart key.

2. Bind emulator key
1) This function can bind emulator key (SKE-LT series) to K518 host.
2) Please insert key to be bound into the host slot.
3) System is binding... Program key when key binding complete.

3. Backup EEPROM data
1) This function can backup EEPROM data.
Generate SKE for emergency when data backup complete.
Insert SKE to switch ignition ON and open dashboard.
2) Receiving vehicle immo data... Please wait patiently.
3) Please name EEPROM backup data.
4) Data backup succeed.Please select “generate emulator key”function to generate a spare key for emergency.

4. Generate emulator key
1) This function can generate a spare master key when all keys are lost, which can open dashboard to add other keys.
2) Receiving local backup data...
3) System shows current data and notify key type.
4) Insert bound emulator key (corresponding color/type) into K518 host slot, and press round button on the key.
5) Generating SKE ... Please wait for 5 minutes patiently.
6) When SKE is generated,press round button on it and put it against start button of vehicle, and try to open dashboard.If the dashboard is lit up, please use SKE to program and add new keys.

5. Add smart key
1) Put SKE or available key against ignition switch and switch ignition ON till dashboard is lit up.
2) System communication, getting info about key numbers...
3) Put registered smart key against vehicle start button, and remove it when buzzer beeps once.
4) Put smart key (to be registered) at start button of vehicle in 30 seconds, and remove it when buzzer beeps twice.
5) Please wait till key registration complete. Operation succeed.

6. Delete smart key
1) Put emulator key or available key close to ignition switch and switch ignition ON till dashboard is lit up.
2) System communication, getting info about key numbers...
3) Put back of registered smart key close to vehicle start button, and remove it when buzzer beeps once.
4) System is deleting key... Deleting succeed. Smart key (away from start button) will be deleted.

Attentions:

1. Bind emulator key: Require to power on the device when put emulator key into K518 host slot.

2. System will read backup data of vehicle to generate emulator key and prompt to choose corresponding key type(refer to back of the emulator).

3. For Carola/Vios/Zelas all key lost, programming is not available in a state of alarm.

Reference:

Chip type	94/D4(SKE black), 88/A8(SKE red), A9(SKE blue), 39(SKE orange)
Remote control type	Specific smart key
Key embryo No.	Specific smart key
Password required or not	Not required.
Remote control	Generate automatically when smart key programming complete.
OBD position	Under steering wheel
Reference pics	Smart key appearance for part of Toyota series Toyota series: 2008  Reiz 0111  smart key 2008  RAV4 0111 smart key 2008  Prado 0140 smart key 2008  Camry 0140 smart key 2008  Corolla 0111 smart key 2008  Cruiser A433 smart key 2008  Alfa    smart key 2008  Previa    smart key 2008  Lexus 0140  smart key 2010  Camry 3370  smart key 2010  Prado 3370  smart key 2010  Reiz 5290  smart key 2010  Crown 5290 smart key 2010  Lexus 3370  smart key 2010  Camry 0020 smart key 2012  Reiz 7930  smart key 2012  Crown 7930 smart ky 2012  Prado 7930 smart key 2012  RAV4 7980  smart key 2013  Lexus ES GS IS smart key 2014  RAV4  2-button smart key 2014  RAV4    3- button smart key 2014  New vios/Yaris L smart key Lexus smart key, select from PCB type: 89904-30291（0140 PCB  ES350 old ver. ) 89904-50430（3370 PCB  ES240/ES350 new ver.） 89904-48321 (5290 PCB  PX270） 89904-28132（0780 PCB  5-button Previa） 89904-6071 （A433 PCB  Cruiser） 89904-0041(0111PCB RAV4 3-buttonReiz Carola)

Five Toyota/Lexus smart Key Emulator Comparison:

Chip Model	Color	Status
39(128bit)	Orange	No need connect from server
94/D4	Black
98	Green
A9	Blue	on the way
88/A8	Red
