Wednesday 19 December 2018

Lonsdor K518ISE firmware update package update and how to update?

Dear Lonsdor K518ISE users, just follow the next steps to download the firmware update package and follow the procedure to update the firmware. It is provided by Lonsdor Engineer so you don't need to worry it won't work.

Step 1. Download free Lonsdor K518ISE firmware update package
URL: https://mega.nz/#!ZYIg1CbJ!HCAZJTPbtJ3VY3X51eJt42a_673-MT8xQq61Qvl17K8

Step 2. How to use:
1. Download and unzip the attached file, you will get

lonsdor-k518ise-flashing-package-01

2. Install "PhoenixSuit_CN.msi".  and open the app "PhoenixSuit".
procedure of flashing 518-02

3. Use a USB cable to connect your K518ISE to a computer.
4.

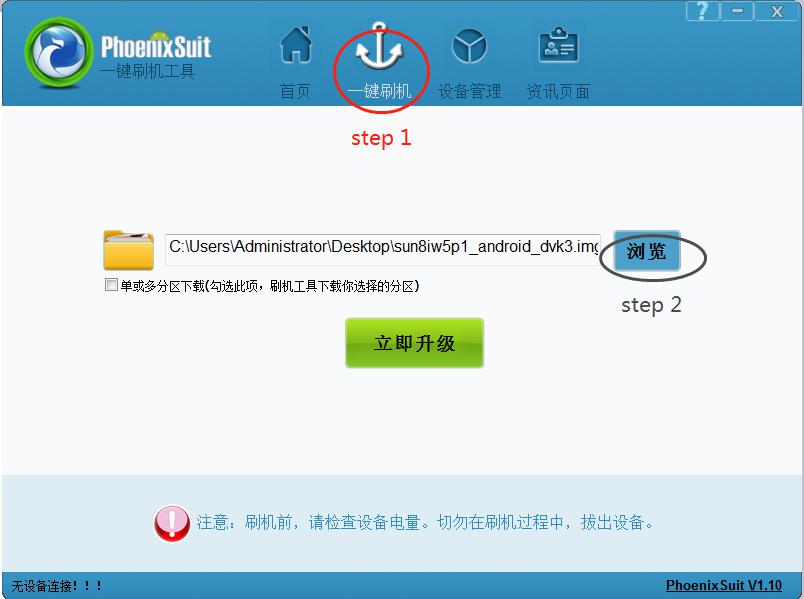

① Click the button in red first.
② Click the button in black next.
procedure of flashing 518-03

③ Find the file procedure of flashing 518-04and click it (marked in red, step 1).
④ Then click the button marked in black (step 2).

procedure of flashing 518-05


5. Hold on the power key and you will see the interface below. Click the
button marked in red. And immediately hold on the volume+ key until
you see a progress bar in the computer.

procedure of flashing 518-05

6. Two windows will pop up, just click YES.
7. Update firmware successfully. Pull out the USB cable and wait for the
device to automatically restore.
8. Don’t touch the device. You will see a white screen and there are two
buttons (set up WIFI and update).
9. Set up WIFI and then update. The problem will be solved after
updating.

http://blog.obd2shop.co.uk/how-to-update-lonsdor-k518ise-firmware-with-free-update-package/

Wednesday 5 December 2018

Lonsdor K518ISE Key programmer Test Results: after 90 days free trial update

Lonsdor K518ISE Key programmer is tested by users 95.5% working fine after 90 days free trial update, it can work fine on an increasing number of car models. Here list some.
lonsdor-k518se-key-programmer-3


1. New 3 month trial period for certain special function.

I used it for Megane 3 with Smart Card system. The programmed key card in 2 minutes. No need pin code or anything...
Seems they have finally got a good competition for the Zedfull.....

2. Mégane 3 RS 2010, 4 buttons card, hands-free. Cards programmed 2 mins, Starts/stops, opens/closes, and the hands-free works too with factory cards

3. Fiat Doblo 2017. Program key ok And disabled key lost
Honda Accord 2012. Add key ok

4. Renault master3 2012 add key ok

5. BMW 1 F25 2012 fem add Key ok

6. Read pin add key Peugeot 208 2014 ok

7. Mazda cx9 2015 add key 4d-63 80bit ok

8. -Renault espace 2008 added 2 smart cards with no error, after finished the 2 cards were not recognized did not start car or work central locking

took long while, 5 minutes per card, MVP coded all cards in under 30 seconds, working perfectly...

9. - I made cas 2 one week ago no problem at all i made key in slot off lonsdor max 5 min

10. -Personally I never had issue with BMW cas 2/3 with lonsdor

11. - Volvo v50 2005 add key and remote ok

12. -Good news !! New update is good for MQB key !! Work fine add key on golf mk7 2015 ! Very fast and easy !!! Bravo !!

13. Mitsubishi space wagon 2003, precoded id61 and programmed key ok.

14. Corsa E (2016) read PIN (BCM) = OK

16. VW Amarok 2016 add key ok and backup EEPROM

17. FIAT 500 2008 Read Pin code and prepare remote key than program. ALL FINE

18. I have start loving this toy when i bought it was working 20% ok 80% not Now it is 95 - 5. Today megane 3 year 2009 keyless key made job in 2minutes

19. Porche Panamera 2010 km adjust obd job done

20. hyunday i20 2015 year
read pin ok
add key ok

21. Citroën c5 2008 read pin add key ok
307 Kline read pin fail/add key ok

22. 206 kline all key lost read pin ok about 3sec
23. Opel Zafira b read pin add key
24. Touran 2006 learn key and remote ok

25. Zafira B, read pin and add key, - Success (note, this failed under Zafira B in menu, but i chose type 3 from by system for both pin read and program and works fine)

26. Peugeot 607 2006 abrites won't connect with BSI to read pin and key learning too.
Lonsdor read pin and program key 2 min.

27. Renault Fluence 2015 keyless go works excellent, in fact, zed full asks for pin and Lonsdor doesn't. The key works ok in central module and keyless go,5 min job.

28. Suzuki Swift 2015-> (pcf7961)
all key lost
Program without pin - OK (2min)

29. Ford focus 2006 year
add key (all key lost) work all ok

30. Suzuki Swift 2013 all key lost - OK

31. Ford kuga smart spare key....ok, max 5min job

32. i30 2009 all key lost pin i key(7936) ok

33. grand Cherokee 2014 add smart ok

34. Lonsdor K518 Jeep Grand Cherokee 2015 Smart Key programming definetely. Read eeprom, calculate pin code OK.

35. Berlingo 2014 all key lost pin read ok

36. Fiesta 2013 keyless ok

37. Mazda 3 2014 add Smart key OK. All keys lost also OK.
I20 2014, read pin without working key and program key OK.

38. 2012 Ford Transit T350 2.2 RWD

AKL ok

Add Keys ok

39. Today Megane 3 year 2009 keyless key made job in 2 minutes.

Lonsdor K518ISE Key programmer FAQ:
Q: hmmm, i suppose i should update, seems like some new features are cropping up,
A: You need update and activate trial version for show new functions for 90 days. If you not activate trial version news functions not visible.

Q: What does trial for 90 data means?
A: for coverage in red color, after 90 days if you want still to use that coverage it will be paid option

Information about subscription update for a year: 600$

I'm planning to buy, but now this will be ban.

Q: Bmw X5 cas3+ the year 2008 add key not successful read ok all , but was not able to add key , ZedFull add in 1 min .
A: you must add it with key in ignition, in slot doesn't work ok, but with key in ignition should work. tested by me

http://blog.obd2shop.co.uk/lonsdor-k518ise-key-programmer-test-results-after-90-days-free-trial-update/

Tuesday 20 November 2018

Monday 22 October 2018

Lonsdor k518ise new update: covers almost all types of cars

Good news!! lonsdor k518ise key programmer newest version released! It covers almost all types of cars and important functions. Please keep reading to find out more.

k518ise Update car list:

k518ise-update-car-list

LUXGEN,
BAIC,
BAOJUN,
YEMA AUTO,
QOROS,
JAC,
ROEWE,
ZOTYE,
FAW RED FLAG,
JMC,
ZHENGZHOU MAZDA,
WULING MOTORS,
SOUEAST MOTORS,
TIANJIN FAW,
FAW JIABAO,
DONGFENG FENGSHEN,
DONGFENG FENGXING,
LEOPAARD,
LANDWIND,
CHANGAN AUTO,
SAIC MAXUS,
HAIMA,
CHANGHE SUZUK,
ZHENGZHOU NISSAN,
HAFEI,
HUWTAI,
LIFAN,
ZX AUTO,
DONGFENG FENGGUANG,
FOTON,
ZD,
BRILLIANCE AUTO,
CHANGHE AUTO,
HANTENG AUTO,
MERCURY,
VENUCIA,
PROTON,
WEY,
TRAUM,
DACIA,
SKODA,
BESTURN,
ROLLS-ROYCE,
SSANG YONG,
SMART,
IVECO,
Mercedes-Benz,
ISUZU,
ALFA ROMEO,
JAGUAR,
LANCIA,
SUBARU,
TRUMPCHI,
DS,
SUZUKI,
MG,
LAND ROVER,
FIAT,
CADILLAC,
OPEL,
VW,
MITSUBISHI,
MAZDA,
RENAULT,
BUICK,
PEUGEOT,
TOYOTA,
CITROEN,
CHERY,
GREAT WALL MOTOR,
GEELY,
KIA

k518ise Update car functions list download:


Thursday 9 August 2018

Lonsdor K518ISE New update: fix bug for Hyundai Toyota Nissan Honda

Good News!! Lonsdor K518ISE can be updated and it has some optimization for Hyundai Toyota Nissan Honda. Please keep reading for more info:

For Toyota:
8A Smart key
2007 Crown key
Alphard add smart key
2006 Reiz
Crown 68 chip all lost

For Hyundai:
2013/2015 Verna remote
2009 Rohens Add smart key
2014 Sonata 8 communication
2014 IX25 smart key all lost

For Honda & Nissan
Honda Accord 9th key
2017 Nissan Teana 4A Transponder

More on car list and feedback:
1. Immo car list
Lonsdor K518ISE Toyota IMMO car list
SeriesOriginYearFuel TypeFunction
CamryOther00-04OtherOrdinary Key(4C)
CamryOtherMay-18OtherOrdinary Key(4D)
ReizOtherOtherOrdinary Key(4D)
CrownOtherOtherOrdinary Key(4D)
HighlanderOtherOtherOrdinary Key(4D)
PradoOther10-OtherSmart Key
CrownOther08-OtherSmart Key
RAV4OtherJan-00OtherSmart Key
ReizOther10-OtherOrdinary Key(4D-G-H-8A)
CorollaOther10-OtherOrdinary Key(4D-G-H-8A)
CamryOtherOct-18OtherOrdinary Key(4D-G-H-8A)
CrownOtherOtherSmart Key
CrownOtherOtherRemote Key
ReizOtherOtherRemote Key
CamryOtherMay-18OtherSmart Key
ReizOther10-OtherRemote Key
CamryOther13-OtherRemote Key
ViosOther13-OtherOrdinary Key(4D)
CorollaOther10-OtherRemote Key
CamryOtherMay-18OtherRemote Key
AVANZAOtherOtherOtherOrdinary Key(4D-G-H-8A)
ViosOther13-OtherOrdinary Key(4D-G-H-8A)
4D-G series lost all keyOtherOtherOtherOrdinary Key(4D-G-H-8A)
HighlanderOtherJan-00OtherOrdinary Key(4D-G-H-8A)
YarisOtherAug-18OtherSmart Key

Lonsdor K518ISE Hyundai IMMO car list
SeriesOriginYearFuel TypeFunction
IX35OtherOtherOtherKey Programming
SonataOtherOtherOtherKey Programming
TucsonOtherOtherPetrol 2.0Key Programming
TucsonOtherOtherDieselKey Programming
TucsonOtherOtherPetrol 2.7Key Programming
MistraOtherOtherOtherKey Programming
ElantraOther08-OtherKey Programming
SonataOtherOtherOtherKey Programming
I30OtherOtherOtherKey Programming
VernaOtherOtherOtherKey Programming
ElantraOrdinary KeyOtherOtherKey Programming
ElantraSmart KeyOtherType 2(With Key Slot K)Smart Key Programming
SonataOtherOtherOtherSmart Key Programming
IX35With Key SlotOtherOtherSmart Key Programming
ElantraOther12-OtherSmart Key Programming
IX35Without Key SlotOtherOtherSmart Key Programming
IX35(F/L)OtherOtherOtherSmart Key Programming
VernaOtherOtherOtherSmart Key Programming
IX25OtherOtherOtherSmart Key Programming
New IX35OtherOtherOtherSmart Key Programming
SonataOther9th GenerationOtherSmart Key Programming
All New SantafeOther13-OtherSmart Key Programming
All New TucsonOtherOtherOtherSmart Key Programming
MistraOtherOtherOtherSmart Key Programming
ATOZKorea1998-2002OtherKey Programming
GETZKorea03-OtherKey Programming
AccentOther2000-2005OtherKey Programming
MatrixKorea06-OtherKey Programming
AvanteKorea2001-2012OtherKey Programming
HD COUPE(Coupe)Korea02-OtherKey Programming
AzeraKorea2006-2010OtherKey Programming
H1Korea1998-2002DieselKey Programming
TRAJET X6Korea2001-2002OtherKey Programming
VELOSTERKorea12-OtherKey Programming
AvanteKorea13-OtherKey Programming
I40Korea12-OtherKey Programming
AzeraKorea11-OtherKey Programming
H1Korea11-OtherKey Programming
VeracruzKorea06-OtherKey Programming
Rohens CoupeKorea09-OtherKey Programming
Rohens (BH)Korea09-OtherKey Programming
EquusKorea2012-2013OtherSmart Key Programming
Rohens CoupeKorea09-OtherSmart Key Programming
I40Korea12-OtherSmart Key Programming
VelosterKorea12-OtherSmart Key Programming
Rohens (BH)Korea13-OtherSmart Key Programming
EquusKorea2009-2011OtherSmart Key Programming
Rohens (BH)Korea09-OtherSmart Key Programming
Rohens (BH)Korea2012OtherSmart Key Programming
VeracruzKorea06-OtherSmart Key Programming
EquusKorea14-OtherSmart Key Programming
All New SantafeOther13-OtherKey Programming
SantafeKorea2001-2002OtherKey Programming
SantafeKorea2009-2012OtherKey Programming
SantafeKorea2006-2008PetrolKey Programming
GRANDSANTAFEKoreaOtherOtherKey Programming
GRANDSANTAFEKoreaOtherOtherSmart Key Programming
AzeraKorea11-OtherSmart Key Programming
SonataOther2005-2014OtherKey Programming
SonataOther2005-2014OtherSmart Key Programming
SantafeKorea2009-2012OtherSmart Key Programming
AccentOther06-OtherKey Programming
SantafeKorea2006-2008DieselKey Programming
ElantraOther12-OtherRemote Key Programming
IX35OtherOtherOtherRemote Key Programming
VernaOtherOtherOtherRemote Key Programming
481All New TucsonOtherOtherRemote Key Programming
SonataOtherOtherOtherRemote Key Programming
Rohens CoupeKorea09-OtherRemote Key Programming
I30OtherOtherOtherRemote Key Programming
All New SantafeOther13-OtherRemote Key Programming
AzeraKorea11-OtherRemote Key Programming
ElantraOtherOtherOtherKey Programming
ElantraOtherOtherOtherRemote Key Programming
TucsonOtherOtherOtherRemote Key Programming
Classified by SystemKey ProgrammingOtherType 1(K)Key Programming
Classified by SystemKey ProgrammingOtherType 2(K)Key Programming
Classified by SystemKey ProgrammingOtherType 3(K)Key Programming
Classified by SystemKey ProgrammingOtherType 4(CAN)Key Programming
Classified by SystemKey ProgrammingOtherType 5(CAN)Key Programming
Classified by SystemSmart Key ProgrammingOtherType 1(With Key Slot K)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 2(With Key Slot K)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 3(Without Key SlotK)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 4(With Key Slot K)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 5(Without Key SlotK)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 6(With Key Slot K)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 7(Without Key SlotCAN)Smart Key Programming
Classified by SystemSmart Key ProgrammingOtherType 8(Without Key SlotCAN)Smart Key Programming
Classified by SystemRemote Key ProgrammingOtherType 1(K)Remote Key Programming
Classified by SystemRemote Key ProgrammingOtherType 2(CAN)Remote Key Programming
Classified by SystemImmobiliser Authorization CodeOtherOtherRead Pin Code
ElantraSmart KeyOtherType 1(Without Key SlotK)Smart Key Programming
Read Pin CodeOtherOtherOtherRead Pin Code
VernaOtherOtherOtherKey Programming
Classified by SystemRemote Key ProgrammingOtherType 3Remote Key Programming
Classified by SystemRemote Key ProgrammingOtherType 4Remote Key Programming
Classified by SystemRemote Key ProgrammingOtherType 5(K)Remote Key Programming

Lonsdor K518ISE Honda IMMO car list
SeriesOriginYearFuel TypeFunction
Classified by SystemOrdinary KeyOtherOtherImmobiliser System 1
Classified by SystemOrdinary KeyOtherOtherImmobiliser System 2
Classified by SystemSmart KeyOtherOtherKnob Type
Classified by SystemSmart KeyOtherOtherButton type
Classified by SystemRemote KeyOtherOther9th generation immobiliser system
Classified by SystemOrdinary KeyOtherOtherImmobiliser System 4
Classified by SystemOrdinary KeyOtherOtherImmobiliser System 3
Classified by SystemOrdinary KeyOtherOtherCheck immobiliser type

Lonsdor K518ISE Nissan IMMO car list
SeriesOriginYearFuel TypeFunction
Classified by SystemOrdinary KeyOtherOtherElectronic key(10)
Classified by SystemOrdinary KeyOtherOtherElectronic key(E0)
Classified by SystemOrdinary KeyOtherOtherElectronic key(12)
Classified by SystemOrdinary KeyOtherOtherAutomatic retrieval type
Classified by SystemRemote keyOtherOtherAutomatic retrieval type
Classified by SystemSmart Key4-digit PIN CodeOtherSmart Key(no key slot - knob type)
Classified by SystemSmart KeyNew 20-digit rolling codeTeana-VIP(13-after)Smart key system 1(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeCima(13-after)Smart key system 1(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeJX35(13-)Smart key system 1(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeQX60(13-)Smart key system 1(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeMuranoSmart key system 1(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeQ50Smart key system 2(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeX-Trail(13-after)Smart key system 3(rolling code)
Classified by SystemSmart KeyNew 20-digit rolling codeQashqai(15-after)Smart key system 3(rolling code)
Classified by SystemSmart Key4-digit PIN CodeOtherSmart Key(no key slot - knob type)
Classified by SystemSmart Key4-digit PIN CodeOtherSmart Key(with key slot - button type)
Classified by SystemSmart Key4-digit PIN CodeOtherSmart Key(without key slot - button type)
Classified by SystemSmart Key4-digit PIN CodeOtherSmart Key(with key slot - button type)
Classified by SystemOrdinary KeyOtherOtherNew 20-digit rolling code
Classified by SystemOrdinary KeyOtherOtherActivate direction lock
Classified by SystemSmart Key4-digit PIN CodeOtherActivate direction lock

2. Feedback
Lonsdor K518ISE Toyota Feedback
Lonsdor K518ISE Hyundai Feedback
Lonsdor K518ISE Honda & Nissan Feedback
http://blog.obd2shop.co.uk/lonsdor-k518ise-key-programmer-feedback-on-what-is-working/

Lonsdor K518ISE after-sale service contact info:
http://www.obd2shop.co.uk/
Skype: obd2tool.co.uk
Email: sales@obd2shop.co.uk
TEL: +86 13983755934

Thursday 26 July 2018

The solution to abnormal display after updating Lonsdor K518ISE

Here is the solution of abnormal display after updating Lonsdor K518ISE.

Problem:

Click "Immobilizer" button after updating the device, it skips to below interface:

how-to-solve-the-abnormal-display-program-after-updating-k518ise-1

Solution:
Step 1. After rebooting the device, please press and hold the setting and return buttons (in below red box) simultaneously for few seconds..

how-to-solve-the-abnormal-display-program-after-updating-k518ise-2

Step 2.  The following interface appears, please click "uninstall APK" button in the red box, and wait for few seconds.

how-to-solve-the-abnormal-display-program-after-updating-k518ise-3

Step 3.  It skips to below interface, please click "OK" to continue.

how-to-solve-the-abnormal-display-program-after-updating-k518ise-4


Step 4. The following interface appears, please click the button in the red box to install factory-set/default APK.

how-to-solve-the-abnormal-display-program-after-updating-k518ise-5

Step 5.  Please wait for about half a minute. The factory-set APK is installed and initiates automatically. Then input the password on boot, and click "OK". It skips to below interface, click "update" in the red box. Remember to reboot the device after updating. You can use it normally now.

how-to-solve-the-abnormal-display-program-after-updating-k518ise-6


Tuesday 19 June 2018

Lonsdor K518iise New Update - European Vehicle Makes and Models


Here is the lonsdor k518ise Key Programmer free update information:

lonsdor k518ise update


PEUGEOT

PEUGEOT\Select from vehicle\1007\Immobilizer\Type 3
PEUGEOT\Select from vehicle\308\Immobilizer\Type 2
PEUGEOT\Select from vehicle\4008(China)\Smart Key
PEUGEOT\Select from vehicle\4008(China)\Immobilizer

LAND ROVER

LAND ROVER\Select from type\Smart Key\Type 1
LAND ROVER\Select from type\Smart Key\Type 2
LAND ROVER\Select from type\Remote\Type 1
LAND ROVER\Select from type\Immobilizer\Type 1
LAND ROVER\Select from type\Immobilizer\Type 2
LAND ROVER\Select from type\Immobilizer\Type 3
LAND ROVER\Select from vehicle\Defender\Remote\2010-2014
LAND ROVER\Select from vehicle\Evoque\Smart Key\2015-
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 1
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 2
LAND ROVER\Select from vehicle\Freelander\Smart Key
LAND ROVER\Select from vehicle\Freelander\Remote
LAND ROVER\Select from vehicle\Freelander 2\Immobilizer\2006-2012

MG

MG\Remote\MG7-L
MG\Immobilizer\ZS\Mechanical Key
MG\Immobilizer\ZS\Smart Key

LANCIA

LANCIA\Immobilizer\Delta
LANCIA\Immobilizer\Musa
LANCIA\Immobilizer\Phedra\Type 1
LANCIA\Immobilizer\Phedra\Type 2
LANCIA\Immobilizer\Phedra\Type 3
LANCIA\Immobilizer\Z\Type 1
LANCIA\Immobilizer\Z\Type 2
LANCIA\Immobilizer\Z\Type 3

SAAB

SAAB\9-7\2006-2008\Immobilizer

Tuesday 5 June 2018

How to solve Lonsdor K518ISE can’t be connected to the supported car models

if your Lonsdor K518ISE can' t be connected to any supported car models, how to  solve?

Is it very possible because the OBD cable, or little chance due to the device?

OBD test cable testing method:
Step 1: Unplug the K518ISE main unit and turn it off
Step 2: Connect the DB25 cable(OBD cable) to k518ISE main unit, using a multimeter and switch to the diode stalls

Pay attention that there are 3 connectors on the OBD cable:
Connector 1: connect K518ISE OBD port;
Connector 2: connect KPROG adaptor
Connector 3: connect the vehicle OBD port

Pic 1 3 connectors on OBD cable

Pic 1 3 connectors on OBD cable

Step 3: Use the red pen to touch the metal part(as shown in pic 2 in red)

Pic 2 Metal part on K518ISE OBD port

Pic 2 Metal part on K518ISE OBD port

Step 4: Use the black pen to test the resistance of each pin of the vehicle
connector (As shown in pic 3) , make sure that you hold the vehicle connector
in the way just as the pic shows:

Pic 3 16 pins on the vehicle OBD connector

Pic 3 16 pins on the vehicle OBD connector

PIN 1 and 8 should have no resistance; PIN2,3,4,5,6,7,9,10,11,12,13,14,15,16 should have resistance.

If all have no resistance, then it will be DB25 cable has problem; if the measurement is all as it supposed to be, and the car models(those K518ISE supported models) still can’t be connected, then you will need to send back the DB25 cable and the main unit for Lonsdor to check( if so, let us know, and we shall talk together about the solution and details )

Thursday 31 May 2018

How to update Lonsdor k518 adapter kernel

Here is the K518 adaptor kernel guide, after the APK of K518 device is upgraded to V1.6.0 version, the adaptor requires to be installed new kernel beforehand. Please refer to below operations.

Step 1: Connect the device to the specified adaptor and plug in 12V power, as shown
below.

How to update Lonsdor k518 adapter kernel-1

Step 2: Start up the device, and input password to enter home screen. Click “Update firmware” button in below red box.

How to update Lonsdor k518 adapter kernel-2

Step 3: The following interface appears, click “Install Adaptor” in below red box.

How to update Lonsdor k518 adapter kernel-3

Step 4: It skips to the below interface, click “OK” to continue.

How to update Lonsdor k518 adapter kernel-4

Step 5: It skips to below interface. You will see the progress indicator moving
rightwards. When downloading is completed, click OK” and exit. The adaptor kernel is installed successfully.

How to update Lonsdor k518 adapter kernel-5

www.obd2shop.co.uk

Wednesday 23 May 2018

Lonsdor K518ISE key programmer feedback on what is working

Lonsdor K518ISE key programmer is easy to use, has a lots of functions, in many places with screenshots how it should work. Not a cheap toy ($1400 with the Toyota pack), but I think it could be a good tool for the daily use (when you already bought it). Needs internet connection (at least once a week to check for updates) for some actions.

To be honest I've spent a lot of times to test it, and I think it promises a lot, but now it is too weak in knowledge for this money. But if you already have it, you can hope that they will work on updates harder as a rock.

Update: It seems to be working now (at least with smart key cars). The making of a smart key for a '14 Dodge Charger was fast & easy: the only trick was that I had to chose Journey from the vehicle list. Pin reading and programming was done in 2 mins.

'13 Jaguar XJ: smart key programming in 2 mins
'14 Jaguar XK: chanceless (only Abritas knows this car today)
'13 Megane III Ph2: no pin reading, asks for pin to be able to do programming.
'11 Clio III Ph2 Grand Tour: Nothing. No communication.
2 pcs Astra H: No pin; 4 pcs Astra G: No pin; and a Corsa C: no pin.
'17 Mustang Shelby GT350: It was harder to get out the rubber pad from the cup holder, than the programming itself. Smart key added in 1 min.
'04 Clio II Ph2 30 sec without pin
'10 Megane III Ph1 RS under one minute with hands free cards
'08 Dodge RAM 1500: it toke 5 mins to catch that it has to be programmed as it were younger than 2012. With that setting under a minute with pin extraction.
'07 E60 Beemer: The customer had a Chinese folding key with 315 MHz and he paid for just the trying - we told him that it won't work - the only thing was that we had to re-activate the original keys. I think it can be done when you use the factory diamond 868 MHz keys.
'13 Dodge Charger smart key OK
'15 Ford Edge remote key OK, under 2 mins.
'04 & '06 Megane II: under a minute, normal cards
'15 Dodge Challenger: under 2 mins OK
Won't work with the Transit Connect variants (small furgons), neither Custom, Passenger, Tourneo. Tried only 5 of 'em from 2006 to a 2016 Eco Flex - no communication, or connection lost after reading the VIN. You can try it as Focus and Fiesta too - the result will be the same. I've made the programming mostly with the SKP900.
'15 Chrysler Town & Country under 30 secs with pin extraction
'11 Ford Transit (Normal big one) under 2 mins with AKL solution
Strange, but true: If you chose AKL @ Transit, then you can program only one key too, the difference is that the remote controller will be disabled, and the immo LED won't switch off, but you can start the car. Tested @ my mates transit, worked fine with only one key fine for 3 days, then was the second key added, because he hated to open the backdoor with two turns to open direction on the driver's door. When I added the second key, the remote began to work again (was added before teaching key).

I think Lonsdor K518ISE is a good tool if you have to deal with smart keys - if pin is needed and the Lonsdor can't deliver it I don't try again when i get the codes.

e90 2007 868Mhz Europe by obd ok

ssangyong korando 2011 diesel all keys lost : programming key with chip 4D - OK

Peugeot 508 2013 pin extraction & programing 0k

Toyota corolla 2010 all key lost "G" succses

Toyota rav4 2006 proxy ok, auris 2015 remote ok, bmw x5 2008 cas3 ok,

Peugeot RCZ 2016 pin OK programme key ok

Megane 2 2007 key card succesfully done. 10 seconds done

read pincode tipe2 PSA done, bsi J.C
read pincode tipe 1 PSA done, bsi VALEO CAN

Peugeot 208 2011 : pin ok programme seconde key ok
Chevrolet captiva 2012 : programme remote ok

BMW X6 2008 cas3 868 mhz succsess by OBD 2 min

Toyota hilux 2018 H add key ok
Nissan murano 2007 old pincode program ok

skoda rapid 2013 24c64 add key - ok. odo -ok
ford focus 2 2007 odo - ok

Astra H 2005 all key lost ok
Pin reader comminication error
counted the pin from the dashboard

Prado 2014 (euro) All key lost G-chip 2 min done. Programmed remote Ok

corolla 2008 all key lost ==>> very good

2012 VW T5 Kombi immo4 NEC24C64 tp23 chip job well done in 5 minutes, all keys lost. You press eeprom back up, then go to make dealer key, place tp23 chip in the machine slot and then learn key. Done! Actually, this car need to put in service mode wrrite eprom back and then add key, with the above procedure u can make only car with can with valid key

BMW f11 2015, keys done (have working key)
BMW f25 fem, keys done (have working key)

Hyundai I10 2012 Europe pin read OK! Key Added OK!!!!!! NO BAD....

Acura / Honda
2003 Honda Accord (AKL)
2004 Acura TSX
2004 Honda Accord
2005 Honda Civic
2006 Honda Pilot (Add)
2006 Honda Ridgeline
2007 Honda Pilot
2008 Honda Civic (Add)
2008 Honda CRV
2009 Honda Accord
2010 Honda CRV - (Remote Key)
2011 Honda CRV (AKL Type 2)
2013 Acura MDX (Flip Key)
2013 Honda Accord - (Remote Head)
2013 Honda Civic (AKL, Imm 2)
2013 Honda Civic
2015 Acura RDX (Smart Key Add)
2016 Honda Civic (Key)
2016 Honda Civic (Prox)
2016 Honda Odessey - (Prox)
2017 Honda Civic - Prox

Audi / Porsche / VW
2004 VW Jetta
2005 VW Golf
2005 VW Golf
2004 VW Passat (Pin n Program)
2012 VW Eos (Clone) (AD48 CAN)

BMW / Smart
2002 BMW 530xi (CAS2)
2006 BMW - (Cas2)
2006 BMW 5 Series - (CAS2)
2008 BMW 320D E91 (CAS3)
2008 BMW 328i - (Add)
2010 Smart Car (Add)

Chevrolet / Cadillac / Buick / Saturn
2003 Cadillac CTS
2004 Cadillac CTS
2006 Chevrolet Impala
2007 Pontiac G5 (Under Enclave)
2008 Chevrolet Impala
2008 Chevy Impala
2008 Saturn VUE (Under Caddy CTS)
2009 Chevrolet HHR (Bypass Wait, Under GMC Sienna)
2010 Chevrolet Malibu
2010 Chevrolet Silverado (GMC Yukon)
2010 GMC Arcadia (Key n Remote)
2011 Buick Enclave (AKL)
2011 GMC Terrain (Under Buick Regal)
2012 Chevrolet Captiva
2012 Chevrolet Equinox (AKL, Pulled pin)
2012 Chevrolet Sonic (AKL, Programmed, Failed Pin Bypass)
2012 GMC Terrain (AKL Under Caddy)
2013 Buick Verano (PRogrammed, Failed to Pull Pin)
2014 Chevrolet Camaro (Read Pin Type 5)
2016 Cadillac CTS (Prox, Pin Under System 1, CTS Programmed)
2016 Chevrolet Cruze (Read Pin / 10min prog)

Chrysler / Dodge / Jeep
2005 Chrysler 300
2006 Chrysler 300 (RHK Bypassed Pin)
2006 Chrysler 300 (Type 1, No Pin required)
2007 Dodge Ram (Bypass Pin)
2007 Jeep Patriot
2008 Jeep Grand Cherokee
2010 Dodge Avenger (Remote Key)
2010 Dodge Charger
2010 Dodge Nitro (Under Dodge Ram)
2010 Dodge Journey
2011 Dodge Challenger
2011 Dodge Nitro (Pulled Pin n Program)
2011 Jeep Liberty (Compass)
2012 Jeep Wrangler
2013 Dodge Caravan
2013 Dodge Caravan (Add, Pod Key, Read Pin)
2014 Chrysler T&C
2014 Dodge Journey
2014 Jeep Wrangler (Under Compass)
2015 Dodge Caravan
2016 Dodge Caravan
2016 Dodge Journey (Prox)
2017 Dodge Grand Caravan (Pod Key, AKL- Pulled Pin and Programmed)
2017 Dodge Journey (Pulled Pin Prox)

Fiat
2016 Fiat 500x (Programmed Key, Failed to Pull Pin)

Ford / Lincoln / Mercury
2001 Ford Taurus
2004 Ford F150 (Under Escape 05 - 07, Bypass Wait)
2005 Ford Explorer (AKL n Bypass Wait)
2005 Ford Focus
2006 Ford F150
2006 Ford Mustang (Add)
2007 Ford Focus (Under Escape n Bypass Wait)
2007 Ford Taurus (Explorer Add Key)
2009 For Taurus
2009 Ford Focus
2010 Ford F150 (Bypass Wait)
2010 Ford F150 (Under Focus)
2010 Ford Mustang (Kuga & Bypass Wait)
2010 Lincoln MKS (Prox, AKL)
2010 Mercury Mountaineer
2010 Mercury Mountaineer
2011 Ford Escape (10min Wait)
2011 Ford F150
2011 Ford F150 (Add 10min.)
2011 Ford Transit
2012 Ford F150
2012 Ford F150
2012 Ford F250
2012 Ford Fiesta
2012 Ford Focus (Bypass Wait)
2012 Ford Focus (Bypass Wait)
2012 Ford Focus (Bypass Wait)
2013 Ford Escape (Add)
2013 Ford F150
2014 Ford Edge (Add, Under Explorer)
2014 Ford Fiesta (Bypass Wait)
2015 Ford Escape (Under Focus 2014)
2015 Ford Escape (Keyed, Under Focus, Bypass Wait)
2015 Ford Explorer
2015 Ford F150 (Flip Key under Mustang)
2014 Ford F450 (Under Raptor 350)
2014 Ford Focus (Add Key)
2015 Ford Fiesta
2015 Ford Focus (Bypassed Wait)
2015 Ford Focus
2016 Ford Edge (Prox, Under New Escape, Bypass Wait)
2016 Ford Explorer (Smart Key)
2016 Ford F150 (Prox, Bypass Wait)
2016 Ford Fusion
2016 Ford Fusion (Flip Key, Bypass Wait)
2016 Ford Taurus (Prox)
2017 Ford C-Max (Focus)
2017 Ford Escap (Prox under Kuga)
2017 Ford Expedition (Keyed)
2017 Ford Expedition (Prox)
2017 Ford Fusion (Prox Under Mustang)

Hyundai / Kia
2012 Kia Optima (Prox worked, Failed Pin Read)
2013 Hyundai Elantra (Prox)
2014 Hyundai Accent (Remote)
2014 Kia Optima (Pulled Pin n Prox)
2015 Hyundai Sonata (Pull Pin)
2015 Kia Optima (Remote)
2015 Kia Sorento ( Did not pull pin)
2016 Hyundai Elantra
2016 Hyundai Elantra (Failed to read Pin)
2017 Hyundai Elantra (Pulled Pin)
2018 Kia Optima (Flip Key)

Infiniti / Nissan
2008 Nissan Murano (Twist)
2008 Nissan Rouge (Pulled pin n Program)
2009 Infiniti FX35 (AKL & Add, Prox)
2009 Nissan Altima (Prox)
2009 Nissan Rogue (Twist)
2010 Nissan Ailtima
2010 Nissan Altima (Prox)
2010 Nissan Rogue
2011 Nissan Maxima (smart Key)
2015 Infiniti Q50 -(Prox)
2012 Nissan Altima (Prox)
2012 Nissan Rougue
2012 Nissan Sentra
2012 Nissan Versa
2013 Nissan Altima (JX35)
2013 Nissan Rouge
2013 Nissan Rouge
2014 Nissan Murano
2014 Nissan Murano (Prox)
2014 Nissan Rogue (20 Digit Pin)
2014 Nissan Rogue (Type 3)
2014 Nissan Rouge (Xtrail Type 3)
2015 Nissan Altima
2015 Nissan Altima
2015 Nissan Maxima
2015 Nissan Murano (Prox)
2015 Nissan Pathfinder (Prox)
2015 Nissan Rouge (Flip Key)
2015 Nissan Rouge (Prox)
2016 Nissan Pathfinder (Prox)
2016 Nissan Rouge
2016 Nissan Rouge (Flip Key, Bypass pin)
2016 Nissan Rouge (Bypass 20 digit pin)
2017 Nissan NV200

Jaguar
2006 Jaguar X-Type
2011 Jaguar XF (Add Prox)
2013 Jaguar XJL (AKL Under XJ)

Landrover / Range Rover
2009 Range Rover (HSE)
2014 Range Rover (Smart Key, AKL)
2015 Land Rover LR4 (AKL)

Lexus / Toyota
2004 Lexus GX470 - (Under Camry 4D)
2004 Toyota Sienna
2006 Toyota Corlla (AKL, Bypass Wait, Under Toy Immo- Type2))
2007 Toyota Prius (AKL, Silver Prox & Remote)
2007 Toyota Rav4
2008 Lexus IS250 (Under IS300)
2008 Toyota Camry
2009 Toyota Camry
2012 Toyota Corolla (Remote Key)
2014 Toyota Prius (Add)
2014 Toyota Rav4 (H Key, and Remote - Type 2) ADD
2015 Lexus GX460 (Under RX270)
2016 Toyota Camry (Key n Remote)
2017 Toyota Prius (Add Type 3)

Mazda
2007 Mazda CX-7 (Prox Card, AKL)
2008 Mazda CX9 (Under Mazda 3)
2009 Mazda 6 (AKL, Under New)
2010 Mazda 3 (AKL, Under MX5)
2010 Mazda 3
2010 Mazda CX-7 (Add)
2011 Mazda 3
2012 Mazda 3 - (Prox)
2013 Mazda 3
2013 Mazda 3 (Bypass Pin)
2013 Mazda 6 (Prox_M6)
2017 Mazda 3 (Prox)
2017 Mazda CX-5 (CX4)
2017 Mazda MX-5 (AKL Under Axela)

Mitsubishi
2003 Mitsubishi Eclipse
2015 Mitsubishi Mirage

Opel
2012 Astra J

Peugeot
2007 Peugeot 307
2009 Peugeot 308 (Add)
2009 Peugeot Expert (Pulled Pin and Programmed)
2013 Peugeot 301

Renault
2007 Renault Megane 2

Subaru
2006 Subaru Forester (Remote)
2008 Subaru Impreza (AKL System 1)
2008 Subaru Outback (AKL)
2017 Subaru Crosstrek (Add Key, failed Program Remote)

Volvo
2006 Volvo C70 (Pod Key - AKL Eeprom)

To be continued......

Thanks to all the users' test reports.

Best source of Lonsdor K518ISE
http://www.obd2shop.co.uk/wholesale/lonsdor-k518ise-key-programmer.html

Friday 13 April 2018

How to update Lonsdor K518ise Key programmer Hibernation Function?

Here is for you information: Lonsdor K518ISE Hibernation Function update instruction. Keep reading to find out more.

Updated Device: Lonsdor K518
Updated Condition: for all K518 devices with working normally
Updated Content: Added Hibernation function; Kernel update supported
Updated Version: K518 APK V1.5.25

Preparation for Update:
1. Power on the device or keep the battery level over 80%.
2. Make sure wifi network is in good condition and the device receives signal normally

Update steps:


Step 1. Click [One key update] and skip to below interface. Then click the first button to update system. When the update complete, click [OK] to reboot the device.

How to update Lonsdor K518ise Key programmer Hibernation Function-1

How to update Lonsdor K518ise Key programmer Hibernation Function-2

How to update Lonsdor K518ise Key programmer Hibernation Function-3

Step 2. After rebooting, click and enter [Settings] menu, you will find there are two additional function buttons: [Update Kernel ] and [Display Settings].

How to update Lonsdor K518ise Key programmer Hibernation Function-4

Step 3. Click [Update Kernel] first and skip to below interface, then press [Update] to update the kernel.

How to update Lonsdor K518ise Key programmer Hibernation Function-5

How to update Lonsdor K518ise Key programmer Hibernation Function-6

Step 4. Click [Install] after updating the kernel file. And the device will reboot to install kernel.

How to update Lonsdor K518ise Key programmer Hibernation Function-7

Step 5. Blank screen is normal during the installation. The whole process will take 5 minutes, be patient to wait and don't restart the device manually.

How to update Lonsdor K518ise Key programmer Hibernation Function-8

How to update Lonsdor K518ise Key programmer Hibernation Function-9

Step 6. The update complete when the password input interface appears. Screen auto-lock in the [Display Settings ] is added.

How to update Lonsdor K518ise Key programmer Hibernation Function-10

Step 7. Enter [Settings][Display Settings] to adjust the screen brightness and screen auto-locking time.

How to update Lonsdor K518ise Key programmer Hibernation Function-11

8. The benefits for update: Save power to prolong stand-by time. Auto standby function can prevent the device from being overheated in hot summer.



How to use Lonsdor K518 Pro to copy access card

This post will introduce you to how to copy an access card using Lonsdor K518 Pro . Firstly, we can choose [Access Card], it also can be cho...
