Lonsdor K518ISE Program 2020 Mazda 3 All Key Lost Free PIN

Lonsdor K518 series has supported all keys lost and added new keys with a free PIN code via OBD for Mazda's new models after 2019. Like Mazda 3, Mazda 6, XC-5, CX-9, XC30. Here's programming the 2020 Mazda 3 all keys lost with Lonsdor K518ISE as an example. We'll simulate the situation for this car.

Let's strap the K518 device to the steering wheel for convenience to operate.

Immo & remote >> Mazda >> China >> Axela >> 2020- >> All smart key lost

* This function requires a WiFi connection, please confirm WiFi is well connected.

Warning

Please use the specific key to the program. After the programming is complete, some aftermarket keys can start the car, but the dashboard's fault light will go on and the fault code can't be cleared.

Press "OK" to continue.

Note:

All smart keys will be deleted, at least 2 keys are required to complete programming.

If the vehicle alarm rings, please wait about 30s for the alarm to end.

Click "OK" to continue.

(For all key lost, this car will be in the alarm situation, you'll need to wait for 30s until the alarm to end. For the simulation, we don't need to wait for this time.)

All the smart keys must be kept 1m away from the car.

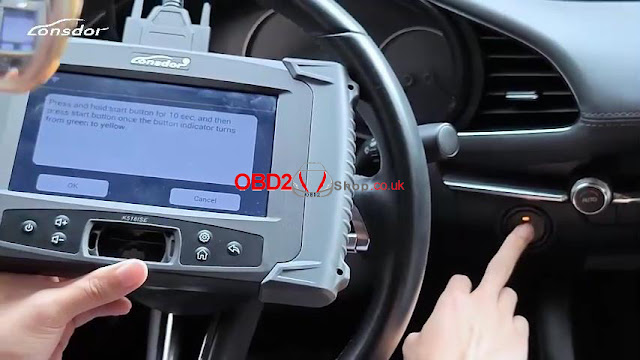

Press and hold the start button for 10s, and then press the start button once the button indicator turns from green to yellow.

If the vehicle alarm rings, please wait about 30s for the alarm to end.

Press "OK".

It takes 7 minutes to grant security access, and the buzzer will beep after 7 minutes...

(We can hear the horn rings, which means we have already got security access.)

Count of current smart keys: 2

Press "OK".

Delete all keys successfully.

Please switch the ignition off.

Note:

1. Turn ignition on.

2. When the start button's indicator light turns green(in 5s), hold the key's logo end near the button.

Current key count:1

Press "OK" to program the next key.

Repeat the operation as before...

Current key count: 3

Press "Cancel" to complete.

Before starting the car engine, you will need to complete the below operation steps:

For AT vehicles

1. Slam on the brake.

2. In turn to put each programmed key onto the car start button to start the engine for 3s, then turn the ignition off.

Test all 3 keys, lock and unlock OK, start car OK.

This is how to program the 2020 Mazda 3 with all keys lost with Lonsdor K518 by OBD successfully.

www.obd2shop.co.uk

Lonsdor K518 (2022-)Toyota 8A-BA/4A Key Add & AKL Upgrade

Lonsdor K518 series has been upgraded to be able to program add key & all key lost without PIN code for the latest (2022-) Toyota/Lexus 8A-BA vehicles. Covering BZ4X, Granvia, Harrier, Venza, Sienna, Wildlander, Sequoia, Tundra, and Land Cruiser.

Requirements

1. Need to activate Toyota AKL Online Calculation first and use Lonsdor FP-30 Cable together.

2. Working for Lonsdor K518ISE/ K518S Key Programmer.

2022+ Toyota 4A IMMO Upgrade

We know the system of the latest Corolla Cross is different from the latest Sienna, it's a 4A chip vehicle. There's another good news today: Lonsdor K518 can program add keys & all key lost without PIN code on the latest Toyota 4A chip type vehicles, including Yaris, Cross, Frontlander, and Yaris HV(2022-).

Operation Process

Here's programming a 2023 Toyota Corolla Cross as an example.

Preparation

1. Before doing this function, we need to connect the Lonsdor's latest Toyota FP30 Cable to a smart box of the car.

2. The other end connects to the OBD port of K518.

*FP-30 will not damage the communication cable of the original car during operation.

3. In addition, we also need a Lonsdor LKE Key Emulator.

Step1. Back-Up Immo Data

Please make sure the device is well connected to the network before the operation!

During the use of this function, please do not operate abnormally, or maliciously steal relevant data, otherwise, the K518 will be locked and cannot be unlocked.

Please turn the ignition on, if fails, please turn on 2 flashing lights.

Immo data backed up successfully.

Step2. Generate Emergency Key

This function can load immo backup data to generate an emergency key in an AKL situation, then you use this key to turn on the dashboard to add keys.

Please put the key emulator into K518's card slot.

Selected the saved immo file.

Generating...

An emergency key was generated successfully.

Please use the emergency key to turn the ignition on, then enter the "Add Smart Key" function menu to add new keys.

Test the emergency key, it's working.

www.obd2shop.co.uk

How to Generate & Add a New Lonsdor LT20 Smart Key?

Lonsdor LT20 smart key family has 8 different shapes to fit the original shell perfectly. Among them, Lonsdor LT20-01, LT20-04, and LT20-08 are the best sellers.

This is LT20-01 with the same board shape as an original keyboard. It's not a problem to fit the original key shells for chip 4D. This model can be used to generate the key like Toyota Camry and Land Cruiser.

LT20-04 is with a board shape to fit the key shells for chip 8A. Its original software is 0020. You can convert the software depending on the model and year of your car. It does a great job, like Toyota RAV4, Highlander.

LT20-08 board shape fits the key shells for chip 8A as well. It supports software 0410. And can be used for many new Toyota models like the year 2022 Camry, Highlander, C-HR, and Avalon.

All 8 different board shapes can be generated with different software with specific frequencies and button functions.

How to generate LT20 smart key?

We'll need Lonsdor K518ISE or KH100+ to process. The operation path is the same for both devices.

Here's taking K518ISE and LT20-04 smart key to generate a new key for the 2022 Toyota Camry as an example. Please remember to set WIFI before key generating.

Special function >> Key settings >> LT smart key >> Convert smart key type >> OK

Push open the card slot's baffle on the device.

Place the key to be generated into the K518 card slot.

By selecting key type >> Generate 8A >> 0410(P4: 91 00 A9 A9) >> 433.58/434.42MHz >> Button 3 Trunk-Button 4 Panic

Generate successfully.

How to make a new LT20 smart key?

IMMO & Remote >> Toyota >> Select from type >> PEPS(passive entry and the passive start) >> Type3(CAN) >> Add smart key

Make sure the smart key battery is full.

Insufficient power may cause program failure.

Put an emulator key or workable original key close to the ignition switch, and turn it ON till the dashboard is lit up.

Current key count: 1

Put the back side of the registered key close to the start button, when the buzzer rings once, remove the key.

Within 30 secs put the back of the key(to be registered) close to the car start button, when the buzzer beeps twice, remove the key.

Operation completed!

Count of registered keys: 2

Count of registrable keys: 5

Let's try whether is the new key working or not.

We can lock and unlock the door.

Done.
