How to fix data getting error when using Lonsdor LKE key emulator

Customer question: Why do I keep getting the following error message when using the Lonsdor LKE smart key emulator?

The technician replied:

Reinstall the battery and follow the steps below:

Insert the LKE smart key emulator into the K518ISE device card slot,

Select "Special functions" in the device interface

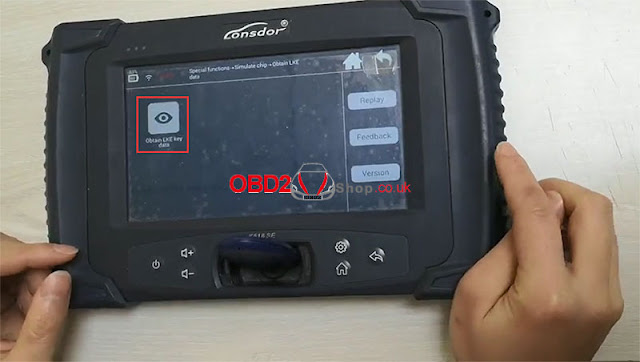

Then, select "Simulate chip" == >> "Obtain LKE data" == >> "Obtain LKE key data"

Downloading application...

Generating...

Then, you will get the following information:

Click "OK" to continue, then click the return sign in the upper right corner of the device to return to the previous interface, select "Generate Simulated Chip" == >> "4D" == >> " 4D chip emulation

Downloading application...

Displays the following information:

Click "OK" to continue

Generating...

The function test of the LKE smart key emulator was successful.

The operation of the video is as follows:

For additional technical support questions, please contact:

https://www.obd2shop.co.uk/

How to use LonsdorADP 8A/4A Adapter for 2017+ Toyota/ LEXUS?

Lonsdor Super ADP 8A/4A Adapter can work with K518 Programmer to do backup immo data, add smart key, delete smart key & generate key emulator(4A8A) for 2017+ Toyota/ LEXUS vehicles. Below is the operation guide for reference.

Lonsdor ADP Adapter Backup Immo Data

Backup immo data >> Finish connection as prompted >> Confirm software SN >> Enter file name to save, OK

Immo data backup successfully.

Lonsdor ADP Adapter Generate LKE Key Emulator

Prepare a LKE Smart Key Emulator in advance. Go to

Generate key emulator >> Make sure connection is OK >> Select file

Put the LKE Key Emulator into K518 card slot, click “OK”.

Emergency key generated successfully.

Please use emergency key to turn ignition on, then enter key programming function to program new key.

Lonsdor ADP Adapter Add Key(AKL)

For all keys lost, need to generate LKEKey Emulator as an emergency key firstly; Otherwise, no need.

Add smart key >> Make sure connection is OK

Switch ignition ON.

Confirm software SN.

Turn ignition off, turn on 2 flashing lights.

Load PEPS Dflash file to acquire 12-bit PIN.

OK >> Select Dflash >> Check current key count

Registered keys:2

Registrable keys:5

Finish the following steps within 30s:

1. hold the registered smart key’s back or generated emergency key closer to Start button, the buzzer beeps once, then take the key away from the button.

2. Hold the smart key(to be registered)’s back closer to Start button, the buzzer beeps twice, then take the key away from the button.

Just wait processing...

Operation completed!

Count of the registered keys:3

Count of registrable keys: 4

Switch ignition ON.

Place a programmed key close to start button of vehicle, then you hear one beep.

Programming complete.

Remember to check if the new key is workable.

Lonsdor ADP Adapter Delete Key

Prepare keys to be saved.

Delete smart key >> Make sure connection is OK

Note:

This function is used to delete all absent keys! Keys that do not touch ignition switch will be deleted, and can’t be registered to use.

Switch ignition ON.

Confirm software SN.

Turn ignition off, turn on 2 flashing lights.

Load PEPS Dflash file to acquire 12-bit PIN.

Select Dflash >> OK

1. Keep the keys to be saved close to the ignition switch, beep once.

2. The rest keys without closing to the ignition switch will be deleted.

Wait processing...

Deleting completed.

Count of the registered keys: 2

Buy Lonsdor K518ISE + Super ADP Adapter combination now to get lower price.

Article Source: http://blog.obd2shop.co.uk/how-to-use-lonsdor-adp-8a-4a-adapter-for-2017-toyota-lexus/

Lonsdor K518ISE Program Range Rover Evoque 2018 AKL via OBD

Using Lonsdor K518ISE to successfully program a Range Rover Evoque 2018 via OBD when all keys lost. You’ll need to open the Lonsdor JLR license firstly. This vehicle is normally very difficult to program. But with K518ISE key programmer, it becomes an incredibly easy way in minutes. No EEPROM, no disassembly.

The JLR License is now available to program Lon

sdor 2018-2021 JLR Key as well.

FAQs refer to:

http://blog.obd2shop.co.uk/lonsdor-jlr-2018-2021-smart-key-new-in-stockfaq/

In this case, you may need a Lonsdor 2015-2018 JLR Specific Key.

Connect K518 programmer with OBD, go into

Immo & Remote >> LAND ROVER >> Select from vehicle >> Land Rover(2015-2018) >> Smart key

*Here’s allowed to select 4 types:

Type 1(FK72)

Type 2(HPLA)

Type 3(write-to-start)

Type 4(program by OBD)

If programming FK72 or HPLA version via OBD, Lonsdor JLR Connector will be in need. Here we just select type 4.

Type 4(program by OBD) >> All smart key lost

Choosing all key lost will delete the original key from system.

New key only supports Lonsdor dedicated key.

Be sure before selecting.

JLR software update works for both FK75 and HPLA versions of KVM system.

Software version: FK72-14C104-AH

Do you have working key for this car?

Select “Cancel” for AKL.

Note: AKL operation will delete all the programmed keys, the unlocked working key can be re-programmed on current vehicle. For the locked working key, please make sure it can be unlocked before programming. Otherwise, it will be deleted.

Select an key position with ID, press “Generate working key”.

Put the new key into K518 card slot.

Select key type: 1. Lonsdor dedicated key for Jaguar Land Rover.

Generated successfully.

If the vehicle is in alarm state, please press the remote’s UNLOCK button to disarm the alarm.

Test the key.

Key works great, we got a working key now.

Done!

I can’t think of a way that could have been any easier. K518 Programmer took me just a few minutes to reprogram this 2018 Range Rover. No need to do any kinds of EEPROM or take any computers out. No risk of breaking the system.
